01330-01

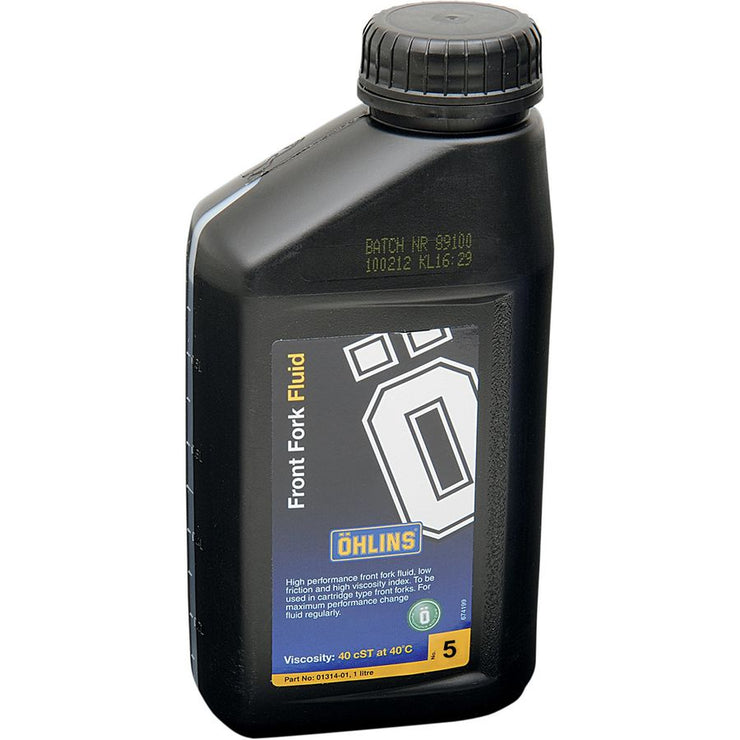

OHLINS Fork Fluid Product Features:
Öhlins has developed high-quality oils for its fork spring kits. They include a range of fork oils which will increase the performance of original telescopic and upside-down forks. The different viscosities available make it possible to select the most suitable oil. (7.5W for 250L and 20W for the Rally)
What distinguishes Öhlins fork oil from conventional oils is that it reduces friction, stays cleaner, has a long service life, and is highly resistant to foaming (known as cavitation). Together with the front fork springs from Öhlins, a considerable improvement in the responsiveness and performance of an original fork can be achieved.
Note: 2 quarts/liters required to completely change the fluid
PLEASE NOTE! The CRF 250L and Rally models only have 1 fork spring and it is housed inside the right fork leg. Also, there is a single aluminum spring spacer included in the Ohlins fork spring kit, it is used on the standard 250L and goes on top of the right spring. It is not used on the Rally. This is covered in the provided instructions, but folks are overlooking it.
The CRF 250l & Rally Recommended Fork oil volume
| Model | Damping Leg (right side) | Spring Leg (left side) |
| CRF250 Rally | 670 cc | 600 cc |
| CRF250 L | 680 cc | 650 cc |
| CRF300 L | 595 cc | 595 cc |
| CRF300 Rally | 610 cc | 555 cc |
Oil recommendation can be found in the detail information for each Öhlins product.
Öhlins has developed high-quality oils for its shock absorbers, forks, and cartridge kits. They include a range of fork oils which will increase the performance of original telescopic and upside-down forks. The forks on the CRF 250L & Rally use OHINS No. 10 Fluid, part number 01314-01
What distinguishes Öhlins fork oil from conventional oils is that it reduces friction, stays cleaner, has a long service life, and is highly resistant to foaming (known as cavitation). Together with the front fork springs from Öhlins, a considerable improvement in the responsiveness and performance of an original fork can be achieved.
Available fork oil types are:
Ohlins part number 01330-01
The 250 Rally and 300L use Ohlins #10 ( SAE 20 W) Ohlins part number 01314-01
The 300 Rally recommendation is 01314 and 01316 mixed at 1:1 ratio. The mix of these two oils equates to roughly SAE 30 W.
