LED Driving Light upgrade for 2017-2020 HONDA CRF 250L Rally and 2021-2025 300L Rally
SRC-DAYLIGHTER-BOL
MOTO STUFF LED Driving Light Upgrade
2017-2020 HONDA CRF Rally 250L
2021-2026 300L Rally
When we read early reviews of the Rally, the stock LED headlights got some good praises, so we were looking forward to not having to do any lighting upgrades to our new bikes. However, after owning our bikes for a while and logging some night miles, it became clear that there is considerable room for improvement in the lighting department. The stock LED system is OK for around town, but if you are traveling back roads, the stock beam pattern is too narrow and short. And there is also a large dead area right in the middle of the pattern that is lacking illumination. To resolve the issue, we researched mounting options and began testing high-end lamps from PIAA, RIGID, BAJA Designs and CYCLOPS. The result of our testing is a plug-and-play kit that can easily be installed in about 30 minutes with common hand tools and requires no cutting into the electrical system. The MOTO STUFF DayLighter kit features the class-leading BLACK OAK LED PRO 2.0 driving lamp offering the best value and performance in our opinion.

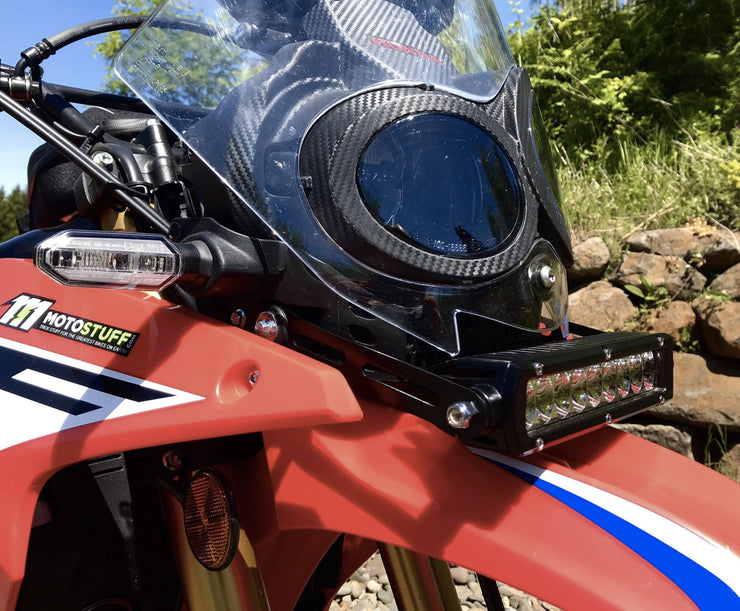

Our bracket system provides 4 hard rubber isolated mounting points on the Rally tower, so the lamp is securely mounted and will not move out of adjustment even in harsh off-road conditions.
Easily installed in about an hour with common hand tools and no cutting of the wiring harness as it plugs directly into the Rally's accessory socket!

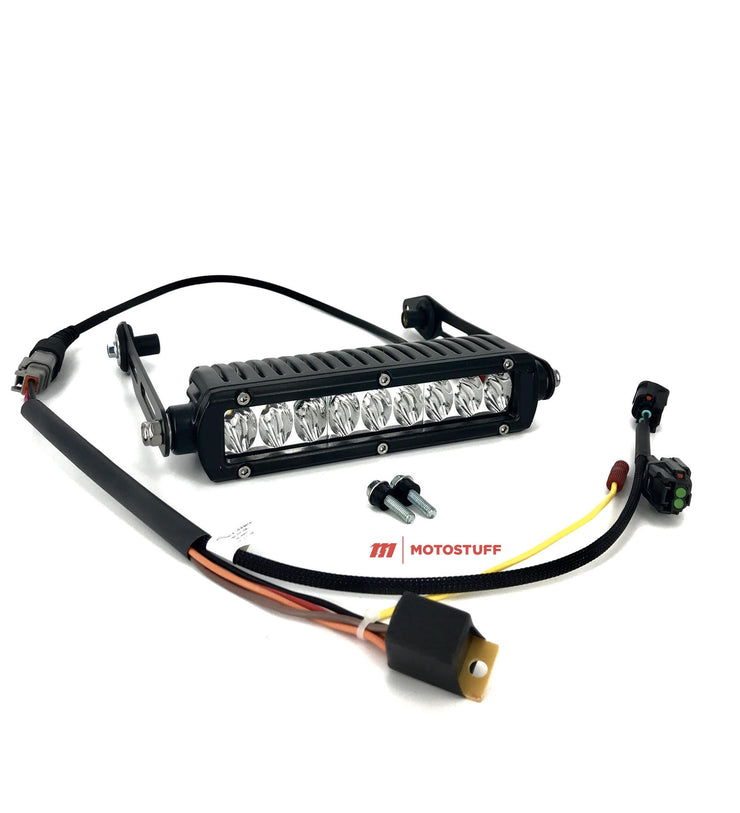

INSTALLATION INSTRUCTIONS DOCUMENT LOCATED: HERE
Our wire harness uses high-end DEUTSCH waterproof connectors and takes advantage of the Rally's powered auxiliary port inside the left fairing for power. And as a bonus, we've integrated an additional auxiliary port into our harness, so you can add our 12 Volt socket or USB charging accessories. (the Rally auxiliary port is a switched 15 amp circuit. Our light upgrade requires 5 amps, so that leaves enough reserve to power a dual USB or 12-volt socket accessory) We've also automated the switching by integrating a waterproof Hitachi micro-relay that is controlled by the Rally's semi-CANBUS controller, which automatically triggers the lamp to switch on when the high beam is selected.
The BLACK OAK LED PRO 2.0 Driving light used in our kit retails for $218 by itself. This is a popular lamp and performs comparably to lights used by top Adventure Motorcycle companies in their BMW and KTM adventure bike premium lighting kits priced at between $700 and $800.
The Black Oak LED PRO 2.0 is designed to project light at extreme distances while consuming very little power. Available in a wide range of lengths and configurations, these LED light bars can be used on virtually any vehicle or marine vessel. Along with being one of the highest output low profile light bar on the market today, the LED PRO 2.0 is built to withstand the harshest of environments, on land or over water. Each LED light bar is manufactured from the highest grade materials available, including unbreakable polycarbonate lenses and Torture Tested housings, and a detailed manufacturing process ensures that each light is resistant to shock, vibration and water penetration for years of trouble-free use.
- 50,000+ Hr LED Lifespan
- Instant On / Off - No Warm Up
- Extruded Aluminum Housing
- Durable Polycarbonate Lens
- Integrated Thermal Management
- 2 Stage Hydrex Seal Lock IP69
- 360° Ceramic Protection from UV, Salt Water and Corrosions
- Watts: 30
- Amp Draw: 2.6
- LED's: 6
- Raw Lumens:3300
INSTALLATION INSTRUCTIONS DOCUMENT LOCATED: HERE
