Electrical Accessories CRF 250L & Rally

PLEASE DOUBLE CHECK YOUR SELECTION BEFORE CHECKING OUT!

Fits 2017 to 2023 Honda CRF 250L Rally/300L Rally models

HONDA was nice enough to include a handy 10 AMP* switched accessory lead that is clipped inside the left front fairing on the CRF 250L Rally & 300L Rally models, however, they have yet to release an accessory lead to plug into it! So we picked up the ball and sourced the correct original HONDA waterproof connectors and built them. All leads are 18" long and allow for safe routing from the left upper fairing, following the factory harness routing to the Rally tower and the mount easily installs using a rubber well nut.

Two options are available to choose from: 12-volt & Dual USB

Please select between these two versions of the Electrical Accessory Lead:

• Dual USB option
• 12-Volt Socket option

Dual USB Version: This is a high-quality dual USB charger with an OE appearance featuring a water-resistant spring-loaded hinged cover. The dual USB charger outputs 2.1 amps for fast phone charging and features a blue led indicator to let you know it's on. Easily installed in just a couple of minutes, all you need is an 8mm wrench or socket to tighten the well nut to secure the bracket to the Rally Tower tube. (remove the rubber plug from the left end of the upper tower bar and insert well nut and snug it up until the bracket is secure!) And plug the other end into the auxiliary power connector inside the left fairing of the Rally.

12 Volt Socket Version: (cigarette lighter style) This is a high-quality 12-volt socket we developed to offer an OEM appearance, with a water-resistant hinged spring-loaded cover. Easily installed in just a couple of minutes, all you need is an 8mm wrench or socket to tighten the well nut to secure the bracket to the Rally Tower tube. (remove the rubber plug from the left end of the upper tower bar and insert well nut and snug it up until the bracket is secure!) And plug the other end into the auxiliary power connector inside the left fairing of the Rally. (2017-2019 CRF 250L kit mounts on the front side of the top right fork triple clamp)

Also available on our site: USB Adapter- For your convenience, We've sourced a rugged Dual USB charger with aluminum housing for use with the 12 Volt socket kit-  in the electrical Accessory section of our website.

* This is a 10 AMP Switched circuit (fuse #5 on the Rally), which means it is turned off and on by the bikes ignition switch.

Here's a shortlist of the average current draw for popular accessories:

• Heated Grips 3-5 AMPS
• USB Phone Charger 1-2 AMPS
• Heated Gloves 3 AMPS
• Heated Jacket 8 AMPS
• Heated Pants 6 AMPS

WARNING: Most High output horns will draw too much amperage for this circuit. If you are planning to use a 12-volt compact air compressor, be sure to check it to make sure it does not draw more than 10 amps! Usually better to get a compressor that connects to your battery tender SAE connector and ensure it's got the proper capacity.

Quick Rally install overview for those of you that may not be familiar with well nuts.

* Note: SRC MOTO is located in Oregon which is one of the few US states that does not have any general sales tax, so none is charged.
However, please be aware when shipping outside the USA, import tax, duties, and other local taxes may still be charged by the destination government or municipality.

PLEASE DOUBLE CHECK YOUR SELECTION BEFORE CHECKING OUT!

HONDA was nice enough to include a handy 10 AMP* switched accessory lead connector that is hidden inside a small black vinyl protective boot located behind the headlamp on the right side on 2017-2023HONDA CRF 250L/300L models.  However, HONDA has yet to release an accessory lead to plug into it! So we picked up the ball and sourced the correct original HONDA waterproof connectors and built it.

DUAL USB Version: This is a high-quality dual USB charger with an OE appearance featuring a water-resistant spring-loaded hinged cover. The dual USB charger outputs 2.1 amps for fast phone charging and features a blue led indicator to let you know it's on. Easily installed in just a couple of minutes, all you need is a 10 mm wrench or socket to secure the mount bracket to the upper right triple clamp bolt.  And plug the other end into the auxiliary power connector mentioned above. Step by step instructions with photos are included.

12 Volt Socket Version: (cigarette lighter style) This is a high-quality 12-volt socket we developed to offer an OEM appearance, with water-resistant hinged spring-loaded cover. Easily installed in just a couple of minutes, all you need is a 10 mm wrench or socket to secure the mount bracket to the upper right triple clamp bolt.  And plug the other end into the auxiliary power connector mentioned above. Step by step instructions with photos are included. We offer a nice rugged aluminum housing USB adapter here in the electrical section if needed.

* This is a 10 AMP Switched circuit (fuse #5 on the Rally), which means it is turned off and on by the bikes ignition switch.

Here's a short list of the average current draw for popular accessories:

Heated Grips 3-5 AMPS

USB Phone Charger 1-2 AMPS

Heated Gloves 3 AMPS

Heated Jacket 8 AMPS

Heated Pants 6 AMPS

WARNING: Most High output horns will draw too much amperage for this circuit. If you are planning to use a 12-volt compact air compressor, be sure to check it to make sure it does not draw more than 10 amps! Usually better to get a compressor that connects to your battery tender SAE connector and ensure it's got the proper capacity.

Here's the connector as viewed from the right side of the bike, just behind the headlight looking upwards from the side reflector area.

* Note: SRC MOTO is located in Oregon which is one of the few US states that does not have any general sales tax, so none is charged.
However, please be aware when shipping outside the USA, import tax, duties, and other local taxes may still be charged by the destination government or municipality.

HONDA was nice enough to include a handy 10 AMP* switched accessory lead that is clipped inside the left front fairing on the 2017-2020 CRF 250L Rally models. The 2017-2022 CRF 250L/300L and Rally's accessory connector is located behind the headlamp on the right side.  It is located inside a small black vinyl protective boot.  However, HONDA has yet to release an accessory lead to plug into it! So we picked up the ball and sourced the correct original HONDA waterproof connectors and built it. Leads are 18" long and allow for safe routing, following the factory harness routing to the instrument cluster area or handlebars to connect to your accessory.

Our plug-and-play accessory lead is easy to install,  just unclip the stock connector cap, connect this lead and attach to your accessory with the included posi lock quick connectors! Posi Lock instructions are included in each kit.

Kit includes 18" 2 circuit lead (18 gauge red 12V+ and Black ground) terminated with Posi Lock connectors with abrasion sheath and 2 black zip ties for secure installation.  Posi-Lock® Connectors have been put to the test worldwide since 1997. Superior in-line splices with just hand tightening! These electrical connectors require no crimping or soldering.  An electrical connector that meets the needs of today's OEM's, and is so good, it's reusable. Truly a connector for the 21st century.

Easily installed in about 10 minutes with common hand tools. No modifications or cutting of any wires required. Detailed instructions with photos are included.

Details on the Rally connector location below.

Details on the 2017-2020 HONDA CRF 250L accessory connector location below.  (it's in a vinyl protective boot behind and below the right side of the headlight.

The view below is from the right side of the bike looking upwards from the ara near the right side reflector.

 This is a 10 AMP Switched circuit, which means it is turned off and on by the bikes ignition switch.

Here's a shortlist of the average current draw for popular accessories:

• Heated Grips 3-5 AMPS
• USB Phone Charger 1-2 AMPS
• Heated Gloves 3 AMPS
• Heated Jacket 8 AMPS

Heated Pants 6 AMPS

WARNING: Most High output horns will draw too much amperage for this circuit. If you are planning to use a 12-volt compact air compressor, be sure to check it to make sure it does not draw more than 10 amps! Usually better to get a compressor that connects to your battery tender SAE connector and ensure it's got the proper capacity.

 * Note: SRC MOTO is located in Oregon which is one of the few US states that does not have any general sales tax, so none is charged.
However, please be aware when shipping outside the USA, import tax, duties, and other local taxes may still be charged by the destination government or municipality.

Buy it now - Use it forever - Lifetime Guaranteed

COMPATIBILITY
Works seamlessly with all cell phones and devices up to 3.4 inches wide and 5/8" thick. This includes all standard and Plus sized iPhones with or without a protective case. Samsung Galaxy, LG, HTC, you name this motorcycle phone mount will hold it.. Securely.
The beauty of this mount is you're able to get any phone, with any phone case, in and out of the cradle with a single hand. Loaded with dual industrial spring creating a rock steady hold on your cell phone while allowing to easily get the phone in and out of the cradle with a single hand.

INSTALLATION
Installation is a breeze - 2 Minute Installation
The kit comes with 3 custom fittings for 7/8", 1" and 1-1/4" bars (Also, works with 1.31" over-sized road bike or mountain bike Bars.)  And fits all SRC GPS Bars
1. Simply place the appropriate spacer over the bar. Connect the clamp with the included wrench and two screws.
2. Loosen the ball and socket joint and position the phone into the desired position. Lock into place.
3. From here you will be able to easily place and remove your phone from the mount with a single hand.
Ride off into the sunset...

TACKFORM ENDURO Overview

Installation Overview below

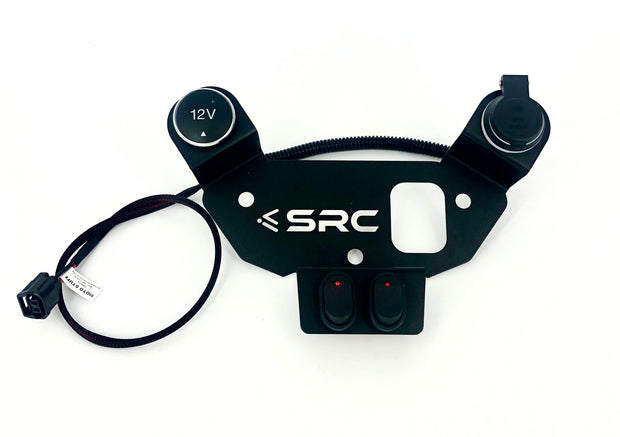

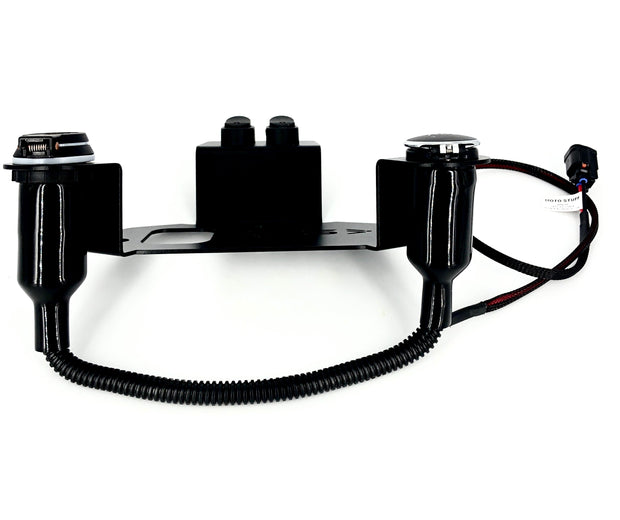

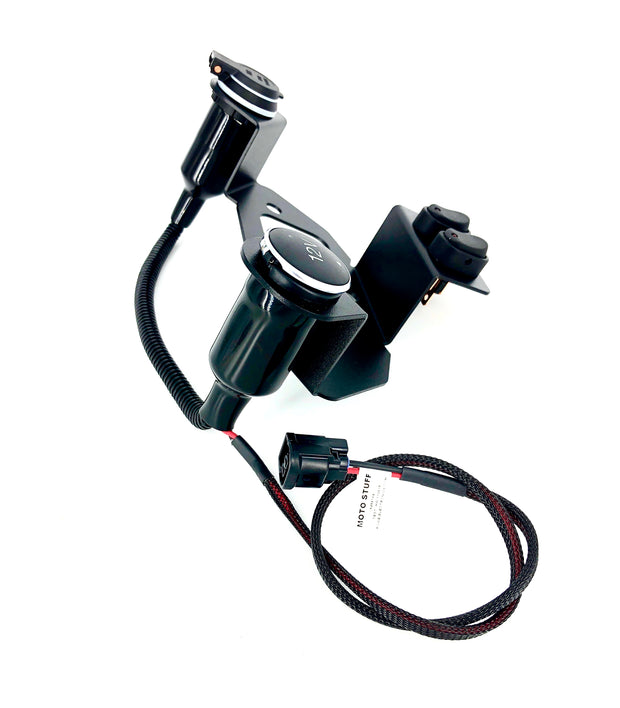

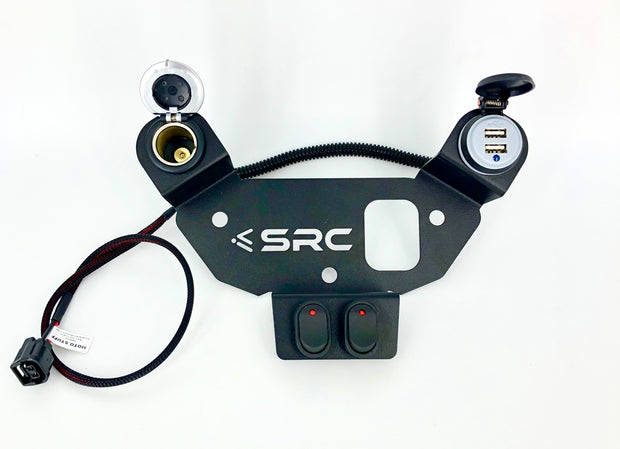

SRC Full Dash Panel 2017-2020 CRF 250L Rally

Add some room for switches and electrical accessories in an ergonomically safe and accessible location around the perimeter of the stock instrument panel.  Constructed of 16 gauge steel powder coated a nice satin black.

* Due to popular demand, we have now upgraded the full dash with the switches fully wired and ready to attach to the 12V+ connection of your 12-volt accessories such as auxiliary lights, heated grips, heated gear, etc. Each switch offers an 18" long wire lead that is controlled by the rocker switch and terminated with a Posi-Lock (see below for a description of how Posi-lock functions). This circuit is powered by the bikes auxiliary 12-volt power source that the dash plugs into, so the switches power will also be turned off when the ignition is switched off.  Please call or email if you need further explanation of how it works, but basically, all the SRC dash accessory circuits are switched by the ignition.  The 2 rocker switches provide additional power and switching options whenever the key is in the on position.

Includes:

• Dash panel with water-resistant rocker switches with bright red LED indicators
• Our best water-resistant 12-volt socket, and Dual USB Charger
• Wiring harness that plugs into the 12-volt accessory connector* inside the left fairing, making this a plug and play upgrade!

To install, you'll need to remove the instrument panel. This is fairly easy. It takes about half an hour with common hand tools.  We recommend watching the first 60 seconds of our LED TURN SIGNAL VIDEO as it clearly shows how to remove the windscreen,  the headlight assembly for easy access to the 3 screws that hold the instrument panel in place as well as the wiring harness connector. With the panel removed, position the Rally Dash into place end then simply re-install the panel, headlight, and windscreen, connect the power lead to the 12-volt connector inside the left fairing (you'll need to remove the protective dust cap prior to making the connection) and you are ready to wire up the switches to power your favorite electrical accessories! *

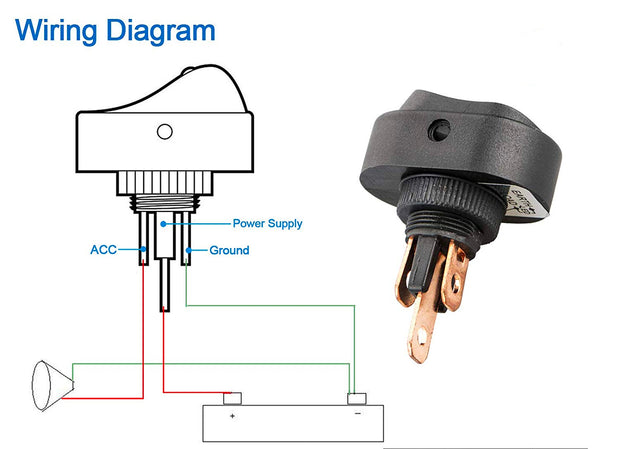

 If you purchase the non pre-wired switches version- Here's How to wire the included switches to power additional accessories. (PS- Due to popular demand, we now offer a version of the dash with the switches fully wired and ready to attach to your 12-volt accessories such as auxiliary lights, heated grips, heated gear, etc)

 *This is a 15 AMP switched circuit on the 250L Rally, which means it is turned off and on by the bikes ignition switch.

Here's a shortlist of the average current draw for popular accessories:

• Heated Grips 3-5 AMPS
• USB Phone Charger 1-2 AMPS
• Heated Gloves 3 AMPS
• Heated Jacket 5 AMPS
• Heated Pants 5 AMPS

WARNING: Most High output horns will draw too much amperage for this circuit. If you are planning to use a 12-volt compact air compressor, be sure to check it to make sure it does not draw more than 10 amps! Usually better to get a compressor that connects to your battery tender SAE connector and ensure it's got the proper capacity.

Nice video below that one of our customers put together covering the install and functionality.

* Note: SRC MOTO is located in Oregon which is one of the few US states without a general sales tax, so none is charged.
However, when shipping outside the USA, import tax, duties, and other local taxes may still be charged by the destination government or municipality.

The quick-adjust camera mount with 2-axis rotation to line up the perfect angle to capture your action shot!

Dango Designs Gripper Mount Features:

• Gripper jaws clamp to irregular shapes and slippery surfaces, such as your helmet, handlebars, or your vehicle.
• Slim yet durable construction allows the Gripper Mount to slip effortlessly into tight situations.
• Easily movable and serves as a quick-attach fixed mount, handheld stabilizer, or mini tripod.
• Flexible front web conforms to your object.
• Robust dual torsion spring provides strong clamping force.
•  2-axis rotation for flexible and quick adjustment to reposition your camera for that perfect shot.
• Compatible with ¼ in 20 mounted digital action cameras (adapter version only see below) (see adapter kit below) and all GoPro® camera models: Hero2, Hero3, Hero4, Hero5, Hero5 Black, Hero5 Session, Hero Session and Hero 6 Black.
• Mount for all Powersports and action sports, including ATVs, motorcycles, bicycles, snowboarding, skiing, surfing, kayaking, motocross, and more!
• All hardware included.

Accessory Adapter Kit sold separately for $7.99 as described below: (recommended for use on most modern MOTO helmets to position the camera far enough away from the chin guard to allow for proper angle adjustment. See Daniels video below for a clear explanation)

Increase your camera angle and mounting options with our new adapter pack for the multisport Gripper Mount from Dango Design! The Adapter Pack makes the Gripper Mount even more flexible. Fine tune your camera’s position with the 20mm and 35mm extension arms.  Make your Gripper Mount compatible with digital action cameras using the ¼” – 20 adapter.

Add On Accessory Adapter Kit Features

• Compatible with Dango Design Gripper Mount and other action camera mounts
  • All GoPro® camera models: Hero2, Hero3, Hero4, Hero5, Hero5 Black, Hero5 Session, Hero Session and GoPro Hero 6 Black
• Makes the Dango Design Gripper Mount Compatible with ¼ in 20 mounted digital action cameras
• The Gripper Mount works for Powersports and action sports, including ATVs, motorcycles, bicycles, snowboarding, skiing, surfing, kayaking, motocross, and more!
• All hardware included

Hardware Included in add on accessory adapter kit*

• 20 mm Universal Extension Arm with Screw
• 35 mm Universal Extension Arm with Screw
• 1/4”-20 Universal Camera Adapter
• * Gripper Mount and GoPro camera not included

Here's an independent review of the Dango Gripper mount for GoPro by the popular YouTube Moto Vlogger Daniel Olszewski. He addresses the concerns we had when we first saw one of the mounts and does a really nice job of showing how versatile the Dango Gripper is.  You can check out more of Daniels work at his YouTube channel here: ReturnOfDeeO

SRC Auxiliary Light Mounting Brackets Honda 250L Rally & 300L Rally

SOLD AS A PAIR

Fits: Honda 250L Rally 2017-2020 & Honda 300L Rally 2021-2024

Sometimes finding a nice solid place to mount your auxiliary driving/fog lights can be a challenge on bikes that have lots of bodywork. SRC Designs light mounting brackets to the rescue!

Made of a nice beefy 3mm ( 1/8" ) stainless steel sheet, they provide a great vibration-free home for your lighting upgrades!  Price is for a pair.

• No drilling or modifications required. Uses stock fasteners.
• Available in a satin black powder-coat finish

* Note: SRC MOTO is located in Oregon which is one of the few US states without a general sales tax, so none is charged.
However, when shipping outside the USA, import tax, duties, and other local taxes may still be charged by the destination government or municipality.

12 Volt Socket USB Adapter- For your convenience, We've sourced a rugged Dual USB high output (2.10 quick charger circuitry) charger with aluminum housing for use with the 12 Volt socket kit-  Available on the electrical accessories section of our site.   It does not fit flush to the socket housing, so it keeps the cover about 3/4 of the way open, which provides easy access to the lower port as well as providing some protection against light rain/water exposure.

 * Note: SRC MOTO is located in Oregon which is one of the few US states without a general sales tax, so none is charged.
However, when shipping outside the USA, import tax, duties, and other local taxes may still be charged by the destination government or municipality.

Dango Designs Gripper Mount Features Accessory Adapter Kit sold separately for $7.99 as described below: (recommended for use on most modern MOTO helmets to position the camera far enough away from the chin guard to allow for proper angle adjustment. See Daniels video below for a clear explanation)

Increase your camera angle and mounting options with our new adapter pack for the multisport Gripper Mount from Dango Design! The Adapter Pack makes the Gripper Mount even more flexible. Fine-tune your camera’s position with the 20mm and 35mm extension arms.  Make your Gripper Mount compatible with digital action cameras using the ¼” – 20 adapter.

Add On Accessory Adapter Kit Features

• Compatible with Dango Design Gripper Mount and other action camera mounts
  • All GoPro® camera models: Hero2, Hero3, Hero4, Hero5, Hero5 Black, Hero5 Session, Hero Session and GoPro Hero 6 Black
• Makes the Dango Design Gripper Mount Compatible with ¼ in 20 mounted digital action cameras
• The Gripper Mount works for Powersports and action sports, including ATVs, motorcycles, bicycles, snowboarding, skiing, surfing, kayaking, motocross, and more!
• All hardware included

Hardware Included in add on accessory adapter kit*

• 20 mm Universal Extension Arm with Screw
• 35 mm Universal Extension Arm with Screw
• 1/4”-20 Universal Camera Adapter
• * Gripper Mount and GoPro camera not included

Here's an independent review of the Dango Gripper mount for GoPro by the popular YouTube Moto Vlogger Daniel Olszewski. He addresses the concerns we had when we first saw one of the mounts and does a really nice job of showing how versatile the Dango Gripper is.  You can check out more of Daniels work at his YouTube channel here: ReturnOfDeeO

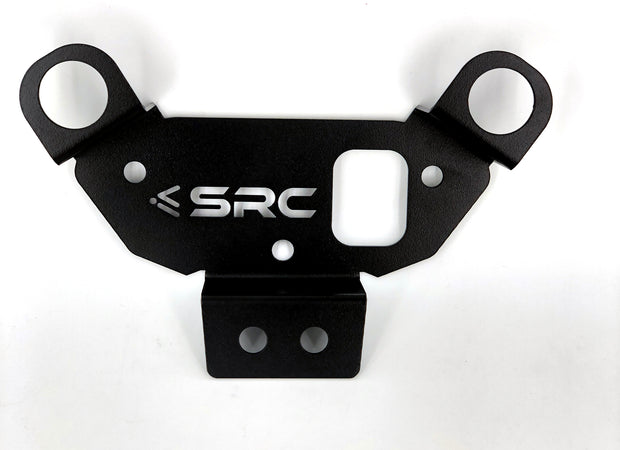

SRC Bare Dash Panel 2017-2020 CRF 250L Rally

Add some room for switches and electrical accessories in an ergonomically safe and accessible location around the perimeter of the stock instrument panel.  Constructed of 16 gauge steel powder coated a nice satin black.

To install, you'll need to remove the instrument panel. This is fairly easy. It takes about half an hour with common hand tools.  We recommend watching our LED turn signal video as it clearly shows how to remove the windscreen,  the headlight assembly and then you have easy access the 3 screws that hold the instrument panel in place as well as the wiring harness connector. With the panel removed, position the Rally Dash into place end then simply re-install the panel, headlight and windscreen and you are ready to wire up some switches and install your favorite electrical accessories!

The upper outlet port diameter is 1-1/8"

The lower switch ports are 1/2" diameter openings.

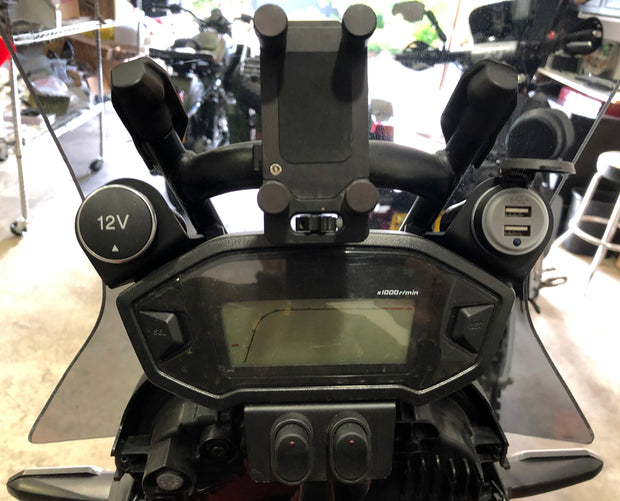

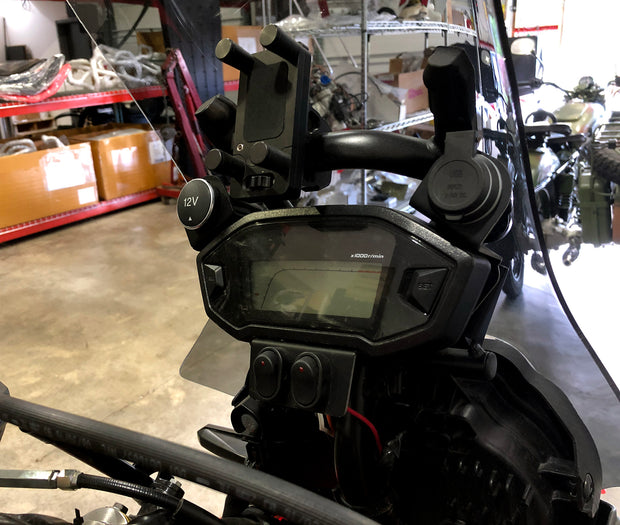

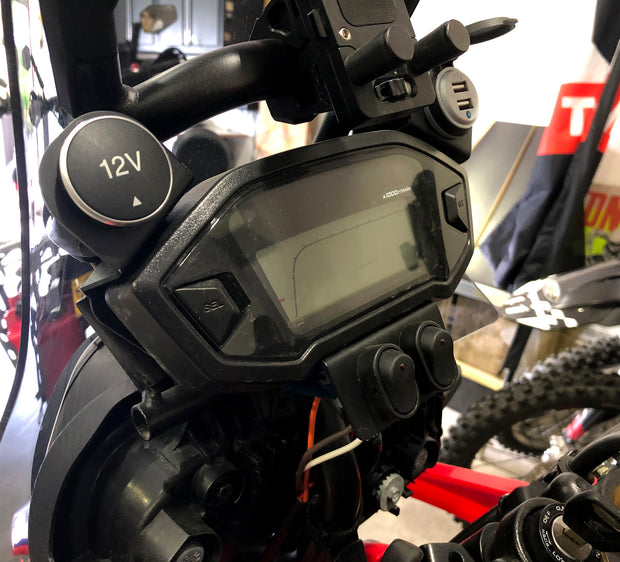

Note: The installed photo shows the product with the switches/chargers, these are not included with this Bare Dash Panel product.

Also available: Panel with water-resistant switches, 12-volt socket and Dual USB Charger for $228 - See product on our site
