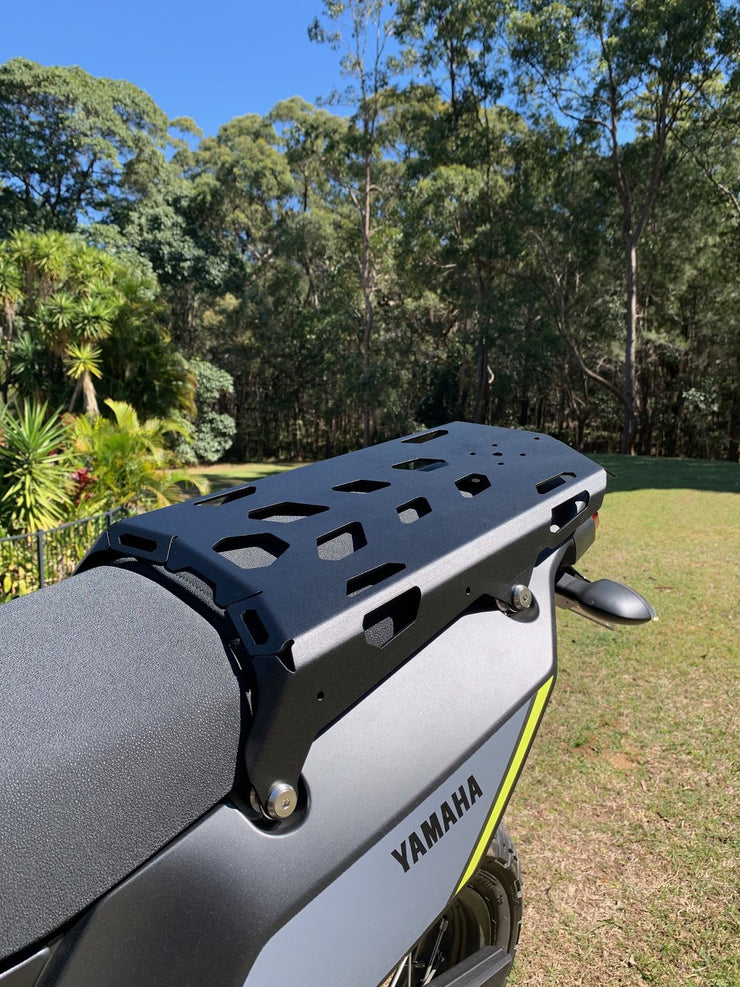

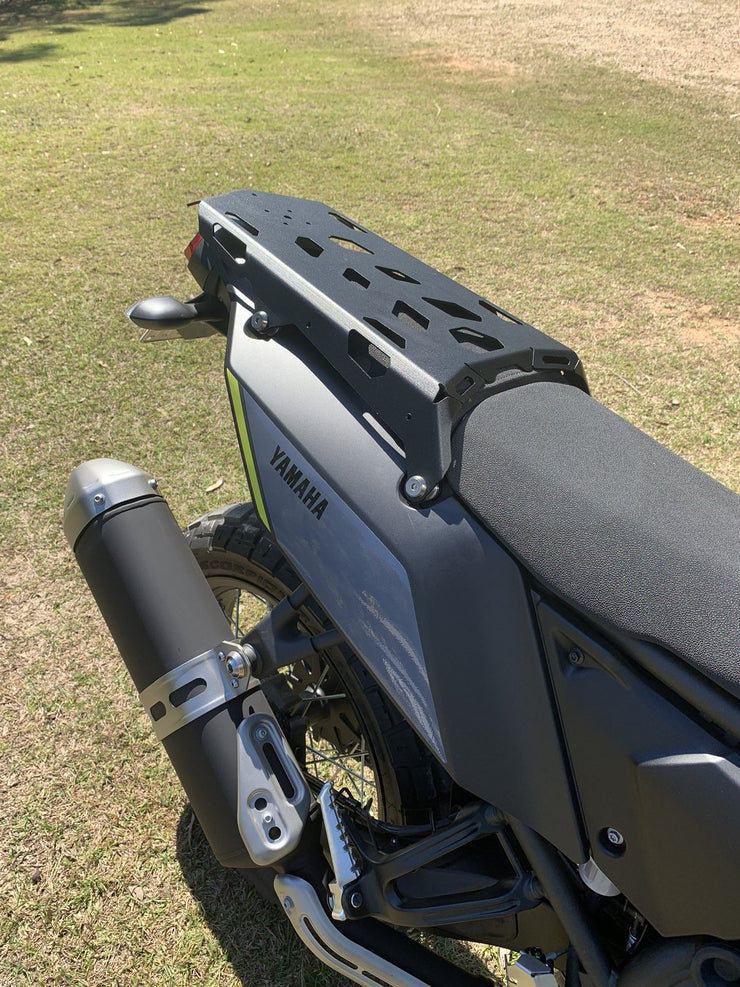

SRC Designs Cargo Tail Rack for Yamaha Ténéré 700 2021-2024 Version 1 (V1)



Made of strong 3mm aluminum alloy plate for an optimal balance of strength to weight. Lots of openings for strapping and bungee cords.  This rack also includes stainless steel support brackets and is rated for up to 22 lbs  (10 Kg) of gear.

  • Black powder coated aluminium
  • Laser cut 3.25mm aluminium plate
  • Light but super strong - only 1.3kg
  • Fits to 4 x existing mounting points on rear of bike

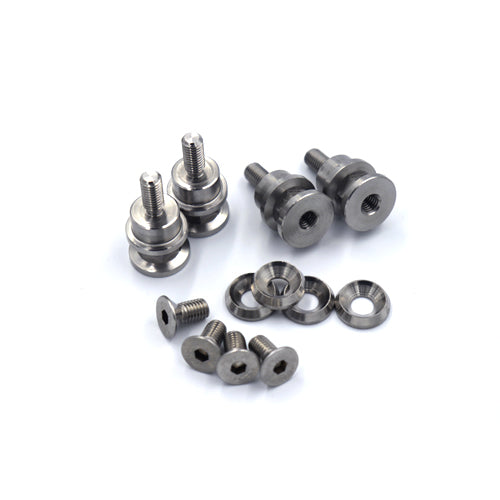

  • Supplied with 4 x stainless steel standoffs to replace existing OEM units
  • Includes all stainless steel mounting bolts & counter-sunk washers
  • Flat section of the rack sits  approximately 10mm above passenger seat (standard OEM seat)
  • Slotted all round to cater for plenty tie down points

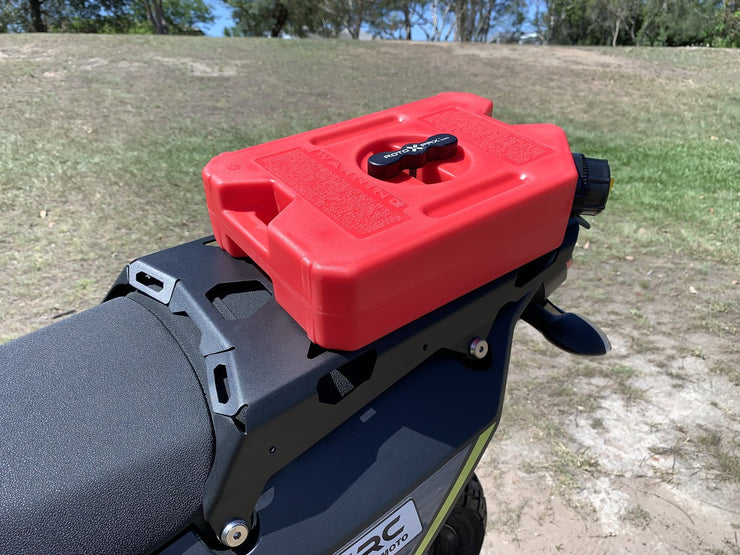

  • Pre drilled to fit SRC 3 litre plastic fuel tank
  • Easy to drill holes to fit the Roto-Pax fuel/water containers in a position to suit you
  • Quick & easy fitment
  • Please note this rack will not fit with the rally seat
  • Fuel tanks & fuel tank mounting brackets as seen in some of the photos are not included in price (sold as separate parts)

The top rack is good for small luggage set up and especially Kriega luggage, however if you need access to the battery or electrics whilst on a ride you need to remove the rack which can be a little annoying and secondly the rack fits over the passenger seat so no place for a passenger to sit. The top rack with side racks is good for riders that have soft luggage and side racks are slightly raised off the side with rubber stands-offs so they stop potential damage caused by luggage rubbing on the plastics. The new rear rack V2 with grab rails  (available here) is great as it allows access to air filter & electrics etc. without the need to remove the seat whilst out on a ride. The real benefit of V2 is using the grab rails to pick up the bike or lift the bike out of ruts & muddy holes etc...as T7 has nothing to hold onto at the rear of the bike. This V2 option allows for much larger luggage to be carried as racks sits further out off the back of the bike. On a side note, the V2 version can also act as rear crash bars as they stick slightly out from the side of bike. We've tested all options and this also comes from reliable customer feedback.


Fitment:

  • Yamaha Ténéré 700 years 2020 - 2023*
  • *Not compatible with optional rally seat

Installation instructions and video*

Note: SRC MOTO is located in Oregon which is one of the few US states without a general sales tax, so none is charged.However, when shipping outside the USA, import tax, duties, and other local taxes may still be charged by the destination government or municipality.
