Full Rack System for the CRF HONDA 250L & RALLY

H-CRF250L-04-02

Regular price $348.00 Sale price $218.00 Save $130.00

19 in stock
19 in stock



OVERSTOCK Reduction Sale!

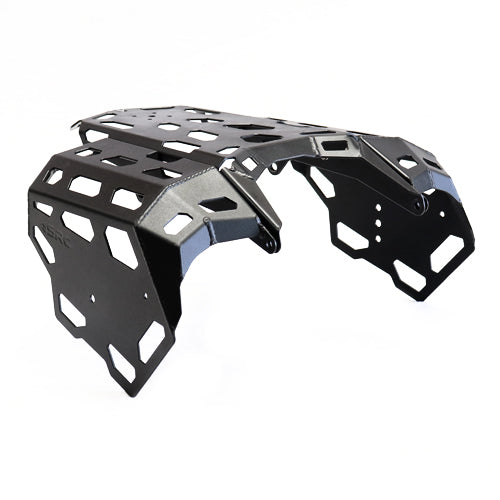

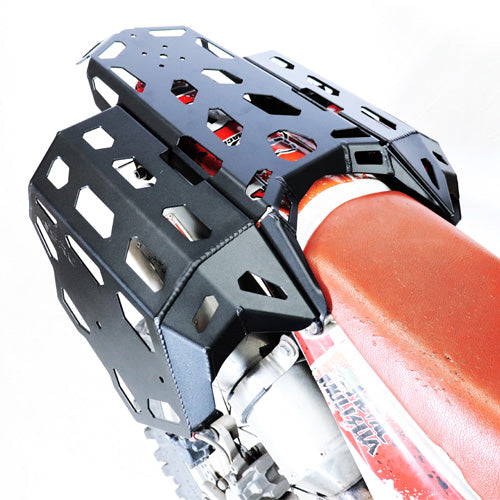

SRC Designs Full Rack System for the 2013-2020 CRF HONDA 250L & Rally 250L The SRC Rack is designed to allow access to the toolbox under the left side panel as can be seen in the images below. Also available with 1 gal / 3L fuel can and mount

This is the Adventure Rack System you want!

Innovative modular design made of high-strength lightweight aluminum alloy. (Entire rack only weighs 4.8 lbs! )

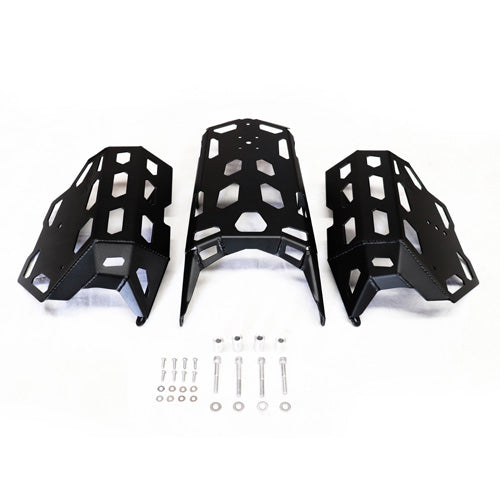

The SRC Designs Full Rack System includes left and right pannier racks, center tail rack, mounting hardware, and instructions (easily installed in about 30 minutes with common hand tools)

The Full Rack System features:

Top rack surface is 14" long and 10" wide at the front, tapering rearward to 8-1/2" The side racks increase the top surface width to 16" wide

Side rack surface is APPROXIMATELY 8" wide and 10" tall

  • High-quality stainless steel mounting hardware, mounts using the existing steel subframe rack points (no drilling required)
  • Pre-Drilled for MOTO STUFF Fuel can quick-release mount. (Not compatible with ROTOPAX) Although a ROTOPAX can be installed on the exterior sides., just not on the interior as shown as the ROTPAX is too wide.
  • Rear Cross Brace for increased rigidity in event of the inevitable tip over.
  • Side racks and top rack feature strategically positioned strap slots for quick and secure attachment of most brands of soft luggage.
  • The SRC Rack is designed to allow access to the tool box under the left side panel as can be seen in the images below.
  • Center Tail Rack is nicely sized and shaped to fit the rear of the 2013-2020 250L & 2017-2020
  • Rally and provides a nice solid foundation for luggage, camping gear, etc. The aluminum rack (weighs just over a pound) mounts to the stock steel subframe points (where the stock strap bolts are located).
  • Not compatible with Yoshimura exhaust due to the Yoshimura side outlet tip.

    Powder-coated satin black for a long-lasting durable finish that looks great on the 250L!

    Available add-ons include (See our site):



    • MOTO STUFF Fuel can



    Please Note: The CRF 250L/Rally specifications indicate a max subframe load of 35 lbs. We have been loading our racks with nearly 60 pounds of gear for the past 2 years and have put about 8,000 miles on our 2 Honda's over all types of terrain and we have not had any issues with the racks or subframe, but the more extreme your usage, it is something to be aware of and take into consideration.

    Here is a link to the PRODUCT INSTRUCTIONS for more information   NOTE: We recommend using blue thread locker on the fasteners.



      * Note: SRC MOTO is located in Oregon which is one of the few US states without a general sales tax, so none is charged.
      However, when shipping outside the USA, import tax, duties, and other local taxes may still be charged by the destination government or municipality.
