Ohlins Fork Spring Kit for HONDA CRF 300L & RALLY 2021-2024

FSK 167

Regular price $259.00 Save $-259.00

0 in stock

The single biggest complaint from CRF 300L and Rally owners is that the suspension is sprung way too light and the damping is inadequate. The bike seems to be set up for a 100-pound beginner rider- Here's how to fix that.  A heavier spring or adjusting the pre-load will not resolve the issue.

Front Fork kit fits 2021-2024 CRF 300L & Rally/Rally ABS

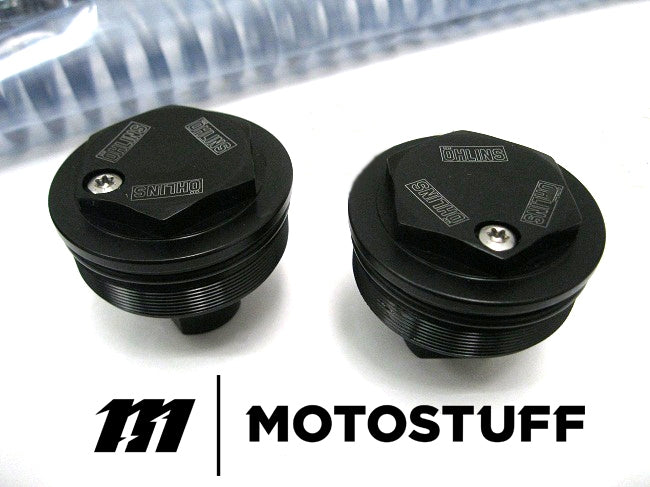

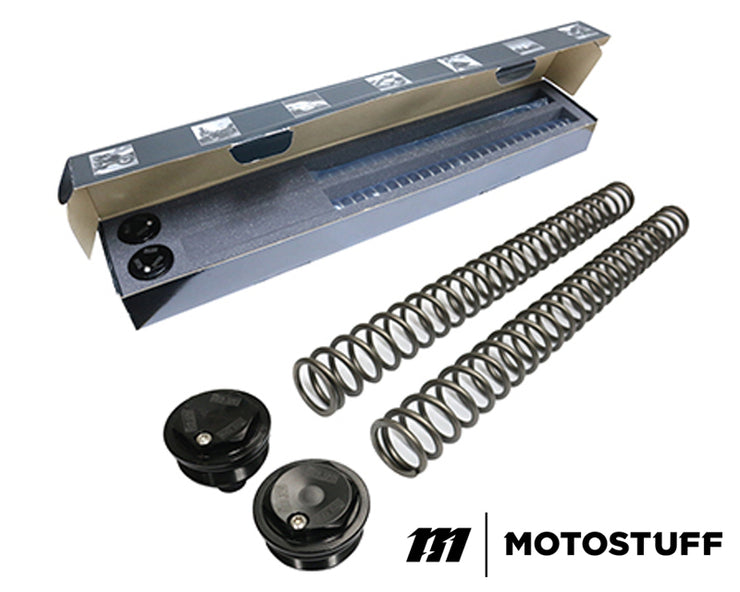

The Fork kit comes with 3 springs, one light spring for 300L riders up to 175 lbs (7.5N/mm), one stiffer for 175+ 300L and Rally riders (8.5N/mm), the last hard spring for Rally riders (9.5N/mm). The kit also includes billet fork caps with integrated air bleeders to allow easy air bleed and keep your suspension nice and plush!

 PLEASE NOTE!  The CRF 300L and Rally models only have 1 fork spring and it is housed inside the right fork leg. Also, there is a single aluminum spring spacer included in the Ohlins fork spring kit, it goes on top of the right spring.

The CRF 300L Rally Recommended Fork oil volume
(Use a good quality 30 wt. fluid for best results) Ohlins fluid is available here on our site.

 Model Damping Leg (right side) Spring Leg (left side)
CRF250 Rally  670 cc  600 cc
CRF250 L      680 cc    650 cc
CRF300 L  595 cc  595 cc
CRF300 Rally 610 cc  555 cc



PS- If you are installing the kit yourself, PLEASE NOTE!

The kit comes with great instructions and there is an installation video below.

We recently installed the kits on our Rally’s and noted 3 things that are sort of glossed over in the instructions.

1-- To remove the fork spring, you need to remove a steel retaining clip located inside the fork tube at the top of the spring. It takes 2 people to do this. One to use a flat blade screwdriver or similar tool to depress the spring a bit while the other person uses a dental pick or similar tool to pull the retainer clip out of the groove. There's not a lot of preload on the spring, so it's not dangerous, it's just a tight space that requires 3- 4 hands! :-)

Please note, the video below is for the 250L & Rally, however the 300's are pretty much the same.

OHLINS INSTALLATION VIDEO
